Stainless Steel Double-End Threaded Idler Roller
This stainless steel double-ended threaded idler roller, constructed with 304 stainless steel body, 303 stainless steel double-threaded shaft core and bearing steel dual bearings, features smooth low-noise operation, high corrosion resistance and strong load-bearing capacity. It supports standard specifications (OD 12-80mm, length 15-500mm, threads M3-M24, step 5mm) and custom designs, widely used in industrial automation conveyor systems.
Working principle and selection logic
（1）Working Principle
The stainless steel double-end threaded idler roller is a passive component designed for material conveying and belt guiding systems.
- Its dual-bearing internal structure allows the roller body to rotate freely around the fixed threaded shaft core, minimizing friction and wear.
- The roller does not provide power; instead, it follows the movement of the belt or material, providing stable support, tensioning, and guiding to prevent belt deviation and ensure smooth operation of the entire system.
- The 304 stainless steel roller body and 303 stainless steel threaded shaft offer excellent corrosion resistance, making it suitable for long-term use in humid, corrosive or food-grade environments.
（2）Selection Logic

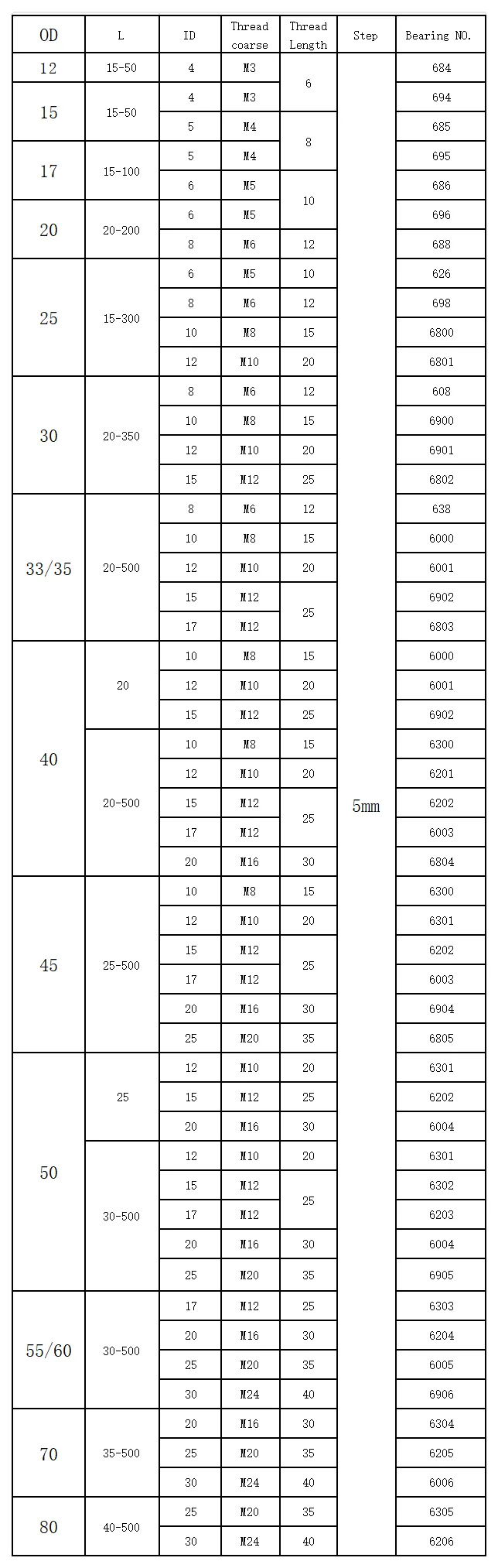

Follow these key parameters to choose the right idler roller:
1. Outer Diameter (OD) & Length (L)
- OD ranges: 12 / 15 / 17 / 20 / 25 / 30 / 33/35 / 40 / 45 / 50 / 55/60 / 70 / 80 mm
- Length ranges: 15–500 mm (varies by OD)
- Select based on belt width, load size, and installation space.
2. Thread Specification (Thread Coarse / Thread Length)
- Thread sizes: M3, M4, M5, M6, M8, M10, M12, M16, M20, M24
- Thread lengths: 6 / 8 / 10 / 12 / 15 / 20 / 25 / 30 / 35 / 40 mm
- Choose thread size and length to match your frame installation holes and mounting requirements.
3. Bearing No.
- Standard bearing models: 684, 694, 685, 695, 686, 696, 688, 626, 698, 6800, 6801, 608, 6900, 6901, 6802, 638, 6000, 6001, 6902, 6803, 6300, 6201, 6202, 6003, 6804, 6301, 6203, 6004, 6904, 6805, 6303, 6204, 6005, 6906, 6304, 6205, 6006, 6305, 6206
- Bearings determine load capacity and rotation smoothness; select based on your working load and speed requirements.
4. Application Environment
- Standard 304 stainless steel is suitable for most industrial environments; for high-corrosion or food-grade applications, special surface treatment or material upgrades can be provided.
Application scenarios and industries of use
1. Automation Conveyor & Production Line Industry
- Widely used for belt conveyor support, belt guiding, anti-deviation and tensioning function.
- Suitable for automated assembly lines, packaging lines, sorting lines, and material handling systems.
- Ensure stable belt running, low friction, low noise and long-term continuous operation.
2. Food Processing & Beverage Industry
- Made of full stainless steel, rustproof and corrosion-resistant, safe for food-grade environment.
- Applied on food conveyor belts, packaging machinery, fruit and vegetable processing equipment.
- Waterproof, washable structure, suitable for frequent water cleaning and humid working conditions.
3.Packaging Machinery & Printing Industry
- Used for belt guiding, film rolling, paper feeding and tension control systems.
- Keep conveyor belts and film materials running straight without deviation.
- High wear resistance and smooth rotation to improve packaging efficiency.
4. Textile Machinery & Garment Equipment Industry
- Applied in textile looms, cloth conveying machines, fabric guiding and tension rollers.
- Stainless steel material prevents rust stains on cloth and fabrics.
- Stable rotation ensures smooth fabric transmission without scratching materials.
5. Door, Window and Sliding Track System Industry
- Used for door and window sliding rollers, guide wheels, track positioning and silent sliding.
- Double-end thread design easy for installation, fixing and position adjustment.
- Anti-rust and durable for long-time opening and closing use.
6. Logistics Express Sorting & Warehousing Equipment
- Used on logistics sorting conveyors, warehouse transportation lines and parcel sliding systems.
- Strong load capacity, suitable for heavy-duty and long-time continuous conveying work.
- Reduce belt friction and extend conveyor service life.
7. Electronic Factory & Precision Automation Equipment
- Applied for small conveyor lines, PCB production equipment, electronic product assembly machines.
- Low noise, smooth rotation, no dust, suitable for precision workshop environment.
- Stainless steel material meets clean workshop requirements.
8. Plastic, Rubber and Chemical Industrial Equipment
- Corrosion-resistant structure suitable for chemical, plastic and rubber production environment.
- Resist weak acid, weak alkali and corrosive gas working conditions.
- Long service life without easy rust or damage.
9. Medical Equipment & Pharmaceutical Machinery Industry
- Stainless steel hygienic design for medical conveyor and pharmaceutical production lines.
- Easy to clean, no rust, safe and sanitary for medical and drug production standards.
10. Outdoor Equipment & Environmental Protection Machinery
- Waterproof, rainproof and rustproof performance for outdoor working environment.
- Used for environmental protection conveying equipment, outdoor belt machines and outdoor guide mechanisms.
11. Woodworking Machinery & Furniture Production Industry
- Used for wood board conveying, feeding guiding and material tension transmission.
- Wear-resistant and sturdy structure for heavy material conveying work.
12. General Industrial Mechanical Equipment
- Universal use for all kinds of mechanical transmission, belt guiding, tensioning and auxiliary rolling parts.
- Easy installation, strong compatibility, widely used in all industrial general machinery.
Presentation of Advantages

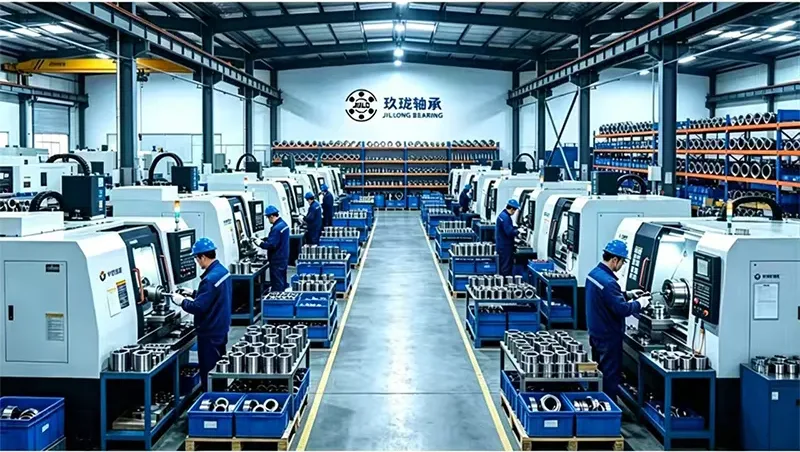

Dongguan Jiulong Bearing Machinery Co., Ltd. is a professional bearing wholesaler and mechanical supporting solution provider, located in Dongguan, an internationally renowned manufacturing city in Guangdong, China. With convenient transportation links to Hong Kong, Shenzhen and Guangzhou, we are strategically positioned to serve customers across the globe.
Our Brands & Authorized Distributions
We act as an authorized distributor and dealer for a wide range of world-famous and domestic premium bearing brands:
- International Brands: NSK, NTN, IKO, KOYO, ASAHI, EASE, THK, EZO, NMB (Japan); FAG (Germany); TIMKEN (USA); SAMICK (Korea); SNFA (France)
- Domestic Brands: HRB (Harbin), ZWZ (Wafangdian), NXZ (Northwest), LYC (Luoyang), TMB (Tianma), TR (Dongguan)
Our Product Range
We supply a comprehensive selection of bearing types to meet diverse industrial needs:
- Deep Groove Ball Bearings
- Self-Aligning Ball Bearings
- Cylindrical Roller Bearings
- Spherical Roller Bearings
- Needle Roller Bearings
- Tapered Roller Bearings
- Thrust Ball Bearings
- Insert Bearings with Housings
- Rod End Bearings / Spherical Plain Bearings
- Linear Bearings
- Stainless Steel Bearings
- One-Way Bearings
- Custom Non-Standard Bearings (OEM & ODM services available)
Industries We Serve
Our bearings are widely used in the following sectors for both new equipment assembly and maintenance applications:
- Machinery Manufacturing
- Power Generation
- Paper Making
- Electric Motors
- Chemical Fiber & Petrochemicals
- Food & Beverage Processing
- Ceramics Production
- Machine Tools
- Metallurgy
- Power Tools
- Pharmaceuticals
- Precision Instruments
Why Choose Us?
- Genuine & Reliable Products: We maintain large spot inventories for all major brands to ensure fast delivery.
- Full Service Support: From pre-sales consultation to after-sales technical assistance, we provide comprehensive support for every customer.
- Competitive Pricing: Thanks to long-term partnerships with manufacturers, we offer stable and competitive prices.
- Customer-Centric Philosophy: We prioritize honesty, quality and customer satisfaction, aiming to build long-term partnerships with clients worldwide.
Main Technical Parameters
Common Materials Of Bearings
High-carbon chromium bearing steel
Most common bearing material—high hardness, wear and fatigue resistance. Used in motors, cars, and machine tools.
Stainless steel
Corrosion-resistant; ideal for food, medical, or marine applications. 440C for high hardness, 316 for better chemical resistance.
Ceramic materials
Lightweight, heat- and wear-resistant, non-magnetic. Used in aerospace and high-speed precision equipment.
Engineering plastics
Self-lubricating, quiet, and chemically inert. Suitable for light-load or maintenance-free environments like pumps and food machinery.
Faqs
The roller body is made of 304 stainless steel, the double-end threaded shaft is 303 stainless steel, with built-in bearing steel dual bearings, featuring rust and corrosion resistance, high wear resistance and long service life.
Outer diameter 12–80mm, total length 15–500mm, thread M3–M24, complete conventional specifications in stock, and customized sizes are supported.
Yes. All stainless steel structure ensures good waterproof and anti-corrosion performance, suitable for humid, outdoor and mildly corrosive working conditions.
Select according to your installation hole, mounting space, belt width and load demand; we can provide professional selection support.
Equipped with dual bearings, it runs smoothly with low noise, strong load capacity, suitable for light and medium-duty conveying and guiding equipment.
Yes, each roller is pre-assembled with double bearings, ready for direct installation and use without secondary processing.
Yes, we support customization of shaft length, thread length, roller size and accept OEM & ODM orders.
Most standard models are in stock for immediate shipment. Custom orders normally take 7–15 working days.
No strict MOQ for standard products, small trial orders are accepted. MOQ for customized products is negotiable.
Widely used in automation lines, conveyor systems, belt guides, door & window tracks, textile machinery and tensioning devices.
